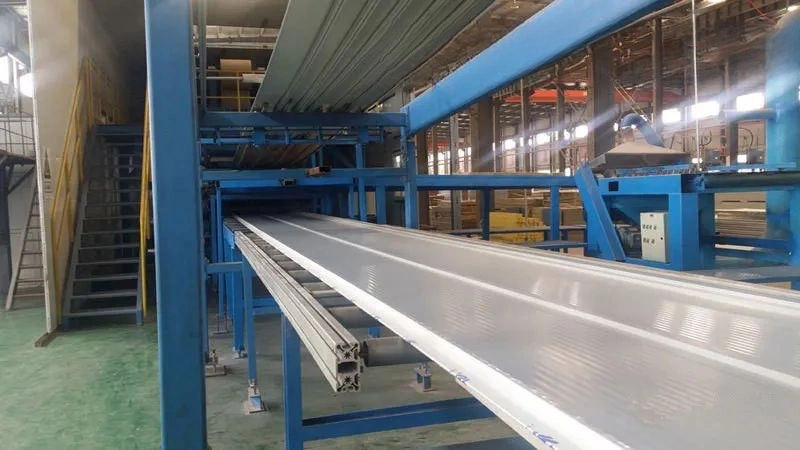

What is a Sandwich Panel Production Line?

A sandwich panel production line is an automated system that produces sandwich panels—composite structures with a lightweight core (e.g., polyurethane, EPS, or rock wool) sandwiched between two rigid layers, often metal. These panels are prized in construction for their insulation, durability, and lightweight properties.

Xinshuo Intelligent’s Sandwich Panel Production Line takes this technology to the next level, offering a flexible, high-performance solution for manufacturers looking to modernize or scale production.

Key Features of Xinshuo Intelligent’s Sandwich Panel Production Line

1. High Automation with Xinshuo LMS

The production line is powered by the proprietary Xinshuo Line Management System (LMS), enabling fully automated operations that require only 3-5 workers. This represents an 80% reduction in labor demand compared to traditional lines, significantly lowering operational costs (savings of $240,000-$590,000 annually).

• Functionality: The LMS integrates real-time monitoring, parameter adjustments, and error detection, ensuring seamless coordination of all components.
• Benefits: Enhances production consistency, reduces human error, and improves workplace safety, allowing manufacturers to scale output without proportional increases in labor.

2. Multi-Core Compatibility

The line’s multi-core compatibility supports a wide range of core materials, including rock wool, EPS, polyurethane, and glass magnesium, all processed on a single system.

• Functionality: A 4-axis feeder with rapid silo-switching enables quick transitions between core materials, while the modular design accommodates various panel specifications.
• Benefits: This versatility allows manufacturers to produce diverse panel types—such as wall panels, roof panels, and clean room panels—without investing in multiple lines, reducing capital expenditure and increasing market agility.

3. Precision Manufacturing

Precision is at the core of the production line, driven by servo tracking cutting systems and deviation correction technology.

• Functionality: The servo system ensures cuts with ±1 mm accuracy, synchronized with production speeds of 10-15 meters per minute. Deviation correction maintains panel alignment, while high-pressure foaming technology ensures uniform core distribution.
• Benefits: Reduces material waste by 10-15%, enhances panel quality, and meets stringent industry standards, making the panels ideal for high-spec applications like clean rooms and cold storage.

4. High-Speed and Efficient Production

The line delivers high-speed production capabilities, achieving outputs of 600-900 square meters per hour.

• Functionality: Equipped with adjustable conveyors and a robust roll forming machine, the system maintains consistent performance at speeds of 10-15 meters per minute. The automated workflow minimizes downtime during material or profile changes.
• Benefits: Enables manufacturers to meet large-scale orders and tight deadlines, boosting throughput and profitability. The high output supports rapid market response, critical in fast-growing sectors like construction.

5. Versatile Panel Production

The production line’s versatile design allows for the creation of multiple panel types through quick configuration changes.

• Functionality: By swapping roll forming machine rollers, the system can produce panels for various applications, including roofing, wall cladding, and clean room enclosures. Customizable settings adjust panel thickness, width, and core type.
• Benefits: Opens multiple revenue streams by catering to industries like construction, HVAC, and transportation. This flexibility reduces the need for additional equipment, optimizing factory space and investment.

Why These Features Stand Out

The combination of high automation, multi-core compatibility, precision manufacturing, high-speed production, and versatile panel production positions Xinshuo Intelligent’s Sandwich Panel Production Line as a transformative solution. These features address key industry challenges—such as labor costs, material waste, and market adaptability—while delivering superior quality and efficiency. Manufacturers benefit from:

• Cost Efficiency: Significant labor and material savings.
• Market Competitiveness: Ability to produce diverse, high-quality panels quickly.
• Sustainability: Reduced waste and energy-efficient design align with green manufacturing trends.

For more details on how these features can elevate your production capabilities, visit https://xsznjx-int.com/product/ or contact Xinshuo Intelligent at (+86) 151-0424-4565 for a tailored consultation.

Technical Innovation and Automation in Sandwich Panel Production

Xinshuo Intelligent’s Sandwich Panel Production Line redefines manufacturing efficiency through cutting-edge technology and automation. Available at https://xsznjx-int.com/sandwich-panel-product-line/, this state-of-the-art system delivers unparalleled precision, flexibility, and productivity, making it a game-changer for manufacturers worldwide.

High Automation for Streamlined Operations

The production line leverages the proprietary Xinshuo LMS (Line Management System), enabling highly automated operations with only 3-5 workers required. Compared to traditional lines, this reduces labor demand by approximately 80%, slashing operational costs while enhancing production consistency and workplace safety. This automation empowers manufacturers to scale efficiently without compromising quality.

多材料多功能性

A standout feature is the line’s compatibility with diverse core materials, including rock wool, EPS, polyurethane, and glass magnesium. By quickly swapping roll forming machines, the system can produce various panel types—such as wall panels, roof panels, and clean room panels—on a single line. This flexibility is rare in the industry, allowing manufacturers to meet diverse market demands with ease.

Precision Manufacturing

Equipped with servo tracking cutting systems and deviation correction technology, the line ensures pinpoint accuracy in panel dimensions, reducing material waste by 10-15%. Additionally, high-pressure foaming technology and adjustable conveyors optimize panel quality, delivering flawless products that meet stringent industry standards.

High-Speed Production

With production speeds of 10-15 meters per minute, the line can output 600-900 square meters per hour. This exceptional throughput significantly boosts manufacturer capacity, enabling rapid response to large-scale orders and tight deadlines.

Components of the Sandwich Panel Production Line

Xinshuo Intelligent’s Sandwich Panel Production Line (https://xsznjx-int.com/sandwich-panel-product-line/) is an advanced, fully automated system designed to produce high-quality sandwich panels with efficiency and precision. Comprising several integrated components, this production line ensures seamless operation, versatility, and superior output for manufacturers. Below, we explore the key components that make this system a leader in the industry, enabling the production of diverse panels for construction, refrigeration, and more.

1. Uncoilers (4 Units)

The production line features four fully automatic uncoilers, each equipped with a hydraulic lifting platform. These units handle steel coils, ensuring smooth and continuous material feeding.

• Functionality: The uncoilers automatically load and unwind steel coils, supporting seamless transitions between coils to minimize downtime. The hydraulic system allows precise positioning and quick coil changes.
• Benefits: Reduces manual intervention, enhances production continuity, and supports high-speed operations (10-15 meters per minute). This automation cuts setup time by up to 50% compared to manual uncoilers.

2. Feeder (4-Axis System)

The 4-axis feeder is a critical component that delivers core materials, such as rock wool, EPS, polyurethane, or glass magnesium, into the production process.

• Functionality: This system supports multiple core materials and features rapid silo-switching capabilities, allowing manufacturers to adapt to different panel specifications without significant reconfiguration.
• Benefits: Enables versatility in panel production (e.g., wall, roof, or clean room panels) and reduces material changeover time by 40%. The precise feeding mechanism ensures consistent core thickness, enhancing panel quality.

3. Roll Forming Machine

The roll forming machine shapes steel sheets into precise panel profiles, a cornerstone of the production line’s flexibility.

• Functionality: Equipped with customizable rollers, the machine forms steel into various profiles tailored to specific panel types. Its modular design allows quick roller swaps to produce different panel configurations.
• Benefits: Supports diverse applications, from roofing to clean room panels, with high precision. The machine’s robust construction ensures durability, maintaining accuracy even at high speeds, reducing defects by 10-15%.

4. Cutting System

The cutting system employs advanced technology to deliver clean, accurate cuts for finished panels.

• Functionality: Featuring servo tracking cutting and options for circular or band saws, the system ensures precise cuts synchronized with the production speed. Deviation correction technology maintains dimensional accuracy.
• Benefits: Minimizes waste by achieving cuts with ±1 mm precision, reducing material losses by 10-15%. The flexibility to choose saw types accommodates different panel materials and thicknesses, enhancing adaptability.

5. High-Pressure Foaming System

The high-pressure foaming system injects core materials, such as polyurethane, into the panel structure to create the insulating layer.

• Functionality: This system delivers uniform foam distribution under high pressure, ensuring consistent insulation properties. Adjustable settings allow customization of foam density and thickness.
• Benefits: Enhances panel thermal performance, reducing energy consumption in applications like cold storage by up to 25%. The uniform foaming process improves structural integrity and reduces production defects.

6. Adjustable Conveyor System

The adjustable conveyor system transports panels through the production line, maintaining alignment and stability.

• Functionality: With customizable speed and width settings, the conveyor adapts to various panel sizes and production requirements. It integrates with the Xinshuo LMS for real-time monitoring and control.
• Benefits: Ensures smooth panel movement, reducing jams and improving throughput. The system’s flexibility supports high output (600-900 square meters per hour) and minimizes manual adjustments.

Integrated Automation with Xinshuo LMS

All components are unified by the Xinshuo Line Management System (LMS), a proprietary control platform that optimizes coordination and automation. Requiring only 3-5 workers, the LMS monitors production in real time, adjusts parameters, and minimizes errors, achieving up to 80% labor savings compared to traditional lines.

Why These Components Matter

The synergy of these components—uncoilers, feeder, roll forming machine, cutting system, foaming system, and conveyors—creates a streamlined, high-performance production line. Manufacturers benefit from:

• Versatility: Produce multiple panel types on a single line.
• Efficiency: High-speed output with minimal waste.
• Cost Savings: Reduced labor and material costs, with annual savings of $240,000-$590,000.
• Quality: Precision engineering ensures consistent, high-quality panels.

For a deeper look at how these components can transform your manufacturing process, visit https://xsznjx-int.com/product/ or contact Xinshuo Intelligent at (+86) 151-0424-4565 for a customized consultation.

Benefits of Xinshuo Intelligent’s Sandwich Panel Production Line

Adopting this system offers compelling advantages:

• Boosted Productivity: Speeds of 10-15 meters per minute yield 600-900 square meters per hour.
• Cost Savings: Automation cuts labor needs by up to 80%, saving $240,000-$590,000 annually.
• Quality Assurance: High-pressure foaming and adjustable conveyors reduce waste by 10-15%.
• Sustainability: Energy-efficient design supports eco-friendly production.

These benefits enhance profitability and align with modern sustainability goals.

Applications of Sandwich Panels in Modern Industries

Sandwich panels, produced by Xinshuo Intelligent’s advanced Sandwich Panel Production Line (https://xsznjx-int.com/sandwich-panel-product-line/), are composite structures renowned for their lightweight design, superior insulation, and durability. These panels, featuring a core material like polyurethane, EPS, or rock wool sandwiched between rigid layers, serve a broad spectrum of industries. From construction to transportation

1. Construction

Sandwich panels are a cornerstone of modern construction, offering energy-efficient and cost-effective solutions for various structural needs.

• Walls and Partitions: Used in residential, commercial, and industrial buildings, sandwich panels provide excellent thermal insulation, reducing energy consumption for heating and cooling by up to 30%. Their modular design enables rapid installation, cutting construction time by 40% compared to traditional materials.
• Roofing Systems: Lightweight yet durable, these panels are ideal for roofing in warehouses, factories, and homes. Their weather-resistant properties and sound insulation (reducing noise by up to 35 dB) make them suitable for diverse climates and urban environments.
• Clean Rooms: In industries like pharmaceuticals, biotechnology, and electronics, sandwich panels are used to construct clean rooms. Their smooth, sealed surfaces prevent contamination, while modular assembly supports quick setup for facilities requiring ISO-compliant sterile environments.

2. HVAC

In heating, ventilation, and air conditioning (HVAC) systems, sandwich panels play a critical role in optimizing performance and energy use.

• Insulated Air Ducts: Panels with high-insulation cores (e.g., polyurethane) are used to fabricate air ducts, minimizing heat loss and improving system efficiency. This can reduce energy costs by 20-25% in commercial HVAC setups.
• Air Handling Units (AHUs): Sandwich panels provide structural integrity and thermal insulation in AHUs, ensuring consistent air quality while reducing noise and vibration. Their lightweight nature simplifies installation in large-scale HVAC systems.

3. Refrigeration

The refrigeration industry relies heavily on sandwich panels for maintaining precise temperature control in cold storage and transport.

• Cold Storage Warehouses: Panels with thick, high-density cores are used to build cold rooms and warehouses, maintaining temperatures as low as -40°C. Their insulation properties reduce energy consumption by 25%, critical for perishable goods like food and pharmaceuticals.
• Refrigerated Transport: Sandwich panels are integral to refrigerated trucks and containers, ensuring stable temperatures during the transport of sensitive cargo. Their lightweight design improves fuel efficiency, lowering operational costs by up to 15%.

4. Transportation

In the transportation sector, sandwich panels contribute to efficiency and sustainability through their lightweight and robust properties.

• Vehicle Bodies: Used in trucks, trailers, and recreational vehicles (RVs), sandwich panels reduce vehicle weight, boosting fuel efficiency by 10-12%. Their durability ensures long-term performance in demanding conditions.
• Marine Applications: In shipbuilding, panels are used for cabin walls and bulkheads, offering insulation and fire resistance while minimizing weight to enhance vessel stability.

5. Industrial and Manufacturing

Sandwich panels are widely adopted in industrial settings for their quick installation and adaptability.

• Factory Enclosures: Panels serve as walls and roofs for factories, offering rapid construction (up to 50% faster than concrete) and durability in harsh industrial environments. Their insulation reduces energy costs for climate-controlled facilities.
• Soundproof Booths: In noisy manufacturing plants, sandwich panels with acoustic cores are used to build soundproof rooms, reducing noise levels by 30-40 dB to protect workers and improve productivity.

6. Agriculture

The agricultural sector benefits from sandwich panels’ insulation and versatility.

• Greenhouses: Panels with translucent cores allow light penetration while maintaining temperature control, creating optimal conditions for plant growth and reducing heating costs by 20%.
• Livestock Shelters: Insulated panels are used to construct barns and poultry houses, ensuring stable temperatures and reducing energy expenses for ventilation and heating.

7. Modular and Prefabricated Buildings

Sandwich panels are ideal for modular construction, addressing the need for fast and flexible building solutions.

• Temporary Structures: Used in construction site offices, disaster relief shelters, and event venues, panels enable quick assembly and disassembly, reducing setup time by 60%.
• Prefabricated Homes: In affordable housing projects, sandwich panels form walls, floors, and roofs, offering energy-efficient and durable homes at 30-40% lower construction costs than traditional methods.

Unlocking Revenue Streams

The versatility of sandwich panels, enabled by Xinshuo Intelligent’s Sandwich Panel Production Line, allows manufacturers to tap into multiple industries. By producing panels tailored to specific applications—such as fire-resistant panels for industrial use or lightweight panels for transportation—manufacturers can diversify their product offerings and capture new markets. The line’s ability to switch between core materials and panel types ensures agility in meeting customer demands.

For more information on how this production line can empower your business, visit https://xsznjx-int.com/product/ or contact Xinshuo Intelligent at (+86) 151-0424-4565 for a tailored solution.

Why Choose Xinshuo Intelligent?

Xinshuo’s Sandwich Panel Production Line combines automation, flexibility, and precision, making it a top-tier investment. For more details or a free consultation, visit https://xsznjx-int.com/product/ or contact Xinshuo at (+86) 151-0424-4565.

Conclusion

Xinshuo Intelligent’s Sandwich Panel Production Line is a cutting-edge solution that empowers manufacturers to produce high-quality, energy-efficient panels with ease. Its automation and scalability make it a must-have for staying competitive in the growing sandwich panel market.
